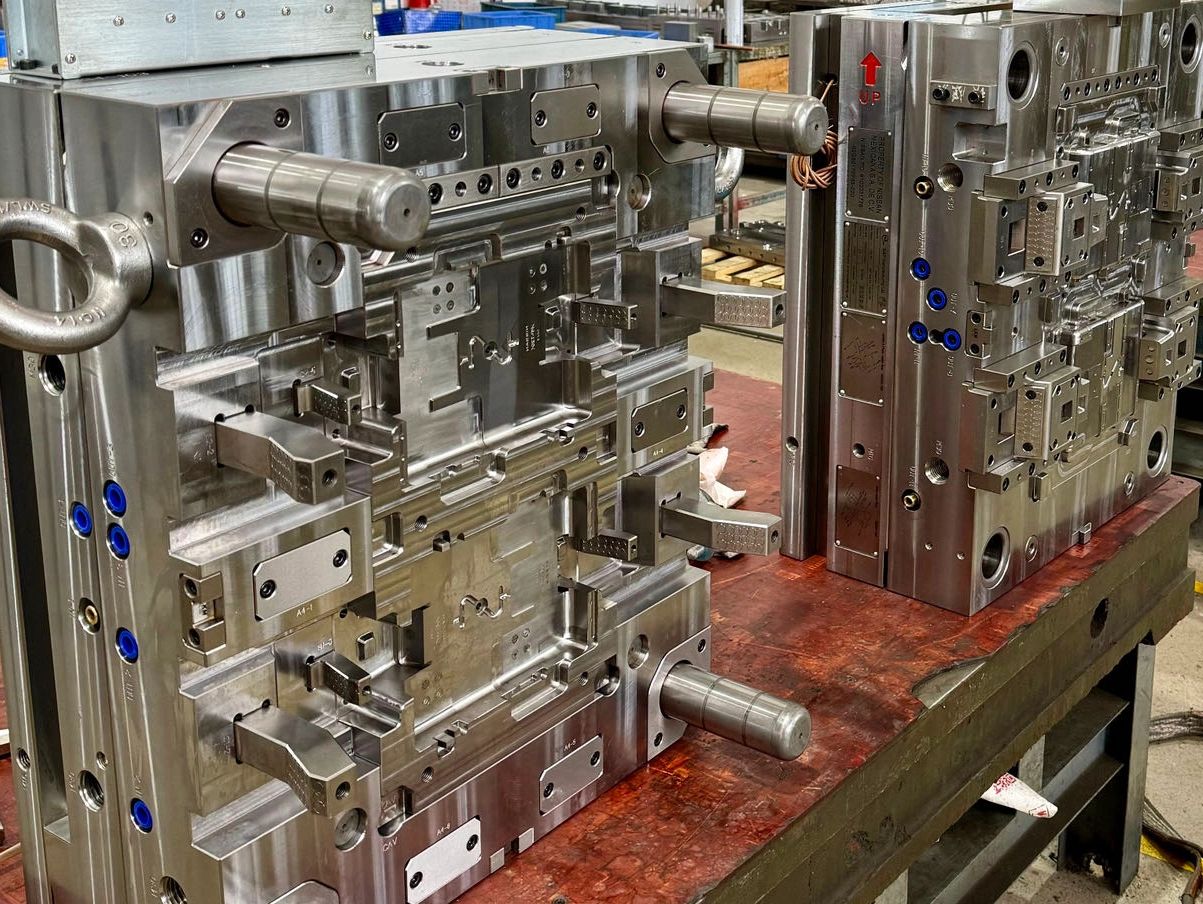

Multi-cavity slide action molds are used for plastic parts that require side cores, undercuts, side holes, clips, windows, snap features, or other features that cannot be released by straight ejection.

Compared with a standard two-plate mold, a multi-cavity slide action mold requires more careful review of part structure, slider movement, mold strength, cavity balance, cooling, ejection, wear areas, and long-term maintenance.

At MP Manufacturing, we support multi-cavity slide action mold projects for overseas molders and OEMs. Before mold design, we review the part geometry, undercut direction, cavity quantity, slider travel, shut-off angle, steel strength, parting line, gate location, cooling layout, ejection method, and customer machine requirements.

For high-volume production, slide action molds must be designed not only to form the part, but also to run reliably over repeated cycles. Slider wear, locking strength, lubrication, alignment, and maintenance access are all important factors that affect mold life and production stability.

For glass-filled or abrasive materials, we also review high-wear areas and may recommend hardened steel, surface treatment, coatings, or replaceable slide inserts to improve durability and reduce maintenance cost.

We normally review:

• Undercut direction and side-core requirements
• Number of cavities
• Slider travel and movement sequence
• Shut-off angle and locking strength
• Gate location and runner balance
• Cooling and ejection layout
• Cavity-to-cavity consistency
• Wear areas and lubrication
• Steel selection and surface treatment
• Customer machine size and mold installation
• Maintenance access and spare components

A well-designed multi-cavity slide action mold should balance part quality, mold reliability, cycle time, and long-term production stability.

Our goal is to help customers reduce tooling risk before cutting steel and build molds that are practical for real production.
